The DM-07 Twisting Machine shall be meant for processing cotton, wool, and blended yarns. It shall allow double rotation of the spindles and in that way effectively doubling the twisting efficiency. This machine achieves real continuous twisting over 10,000 meters without yarn breakage. High-quality twisted yarns for downstream customers.
Tags: china Two For One Twister Machine, TFO machine, TFO(two for one) twister machine, Two for One, Two For One Twister Machine made in china, Two For One Twister Machine manufacturer, Two For One Twister Machine supplier, two-for-one twister machine
TFO (two for one) twister machine DM-07
Product Detail
Advantages of the TFO Twister Machine
The TFO (Two-for-One) Twister Machine DM-07 has incorporated many advanced technologies in the formation of quality yarn and stability in operation:Inverter Control & Oil-Bath Gearbox: This machine has adopted frequency inverter control system and an oil-bath type gearbox to ensure high-quality yarn formation at any winding speed with stability in operation. The system is very user-friendly and energy efficient.
Energy-saving design with components of great value: Power consumption is effectively controlled by the use of quality parts coupled with an energy-efficient design.
Professional yarn guiding system: The yarn path has been optimized to minimize damage to the yarn and it is better suited for high-quality twisted yarn production.
Low hairiness, fewer knots & breakages: Twisted yarns come out with low hairiness, fewer knots, and excellent strength.
Flexible Design: The unit can be altered to suit particular client needs, allowing adaptability in output.
Main Components of the TFO Twister Unit
Servo Control for the TFO Twister
The servo control for the TFO twister is very important in today's textile production; it offers very high efficiency, accuracy, and steadiness. It has three separate motors:
Major Spindle Motor A:
This motor is at the core of the twisting process, it provides powerful and stable torque. Consistent twist per meter (TPM) at high speed for the twisting process has been ensured by this motor.
Normal operation and accompanying phases like startup and stopping of yarn twisting are facilitated by this motor with precise and uniform yarn twist.
Winding Drive Motor B:
It controls yarn winding on the one hand ensuring even winding tension at different speeds. It also ensures compactness during winding is very consistent.
In turn reducing yarn breakage and fuzz, it greatly improves yarn quality, creating a strong base for the next textile steps.
Traverse Drive Servo Motor C:
In charge of controlling side-to-side yarn movement as it winds.
Its exact control makes sure that the yarn layers evenly on the package, stopping overlapping or spreading out which improves the final package quality and cuts downstream problems.
PLC Control System
A PLC (Programmable Logic Controller) located in the electrical control cabinet takes centralized control of all motor functions. The motors are related in such a way that they maintain a constant speed ratio and thus provide consistent TPM throughout machine start-up, operation, and shutdown. This, in turn, ensures very high yarn quality and reduces variation in the product caused by instability during operation while improving production efficiency.
E-Save Spindle Series
Good spindles are critical for quality twisted yarns.
E-save spindle series:
Special Surface Treatment: All parts that touch the yarn are treated to make sure the yarn is safe.
Low Vibration & Noise: All spinning parts are placed on soft pieces for smooth and quiet work.
Self-Lubricating Upper Bearings: Comes with special cover to keep out dust.
Grease-Lubricated Internal Bearings: Each has its own oil nozzle for best lubrication.
Adjustable Yarn Unwinding Tension: Can adjust for different yarn types.
Pneumatic Self-Cleaning Yarn Channels: Keeps the yarn way clean so there is no stop in work.
Division between the Twisting and Drive Areas: It guarantees mechanical stability as well as yarn safety.
Flexible, Modular Spindle Design: Intended for low energy use and high efficiency.
Spindle is the core of TFO. Serialized energy-saving spindle design and new concept transmission system are the key to reduce energy consumption.Energy-saving spindle series, including the following spindles:
| DM-07/-07HE/-07ECO | DM-08/-08HE/-08ECO | DM-09/-09HE/-09ECO | DM-10/-10HE | DM-11 |

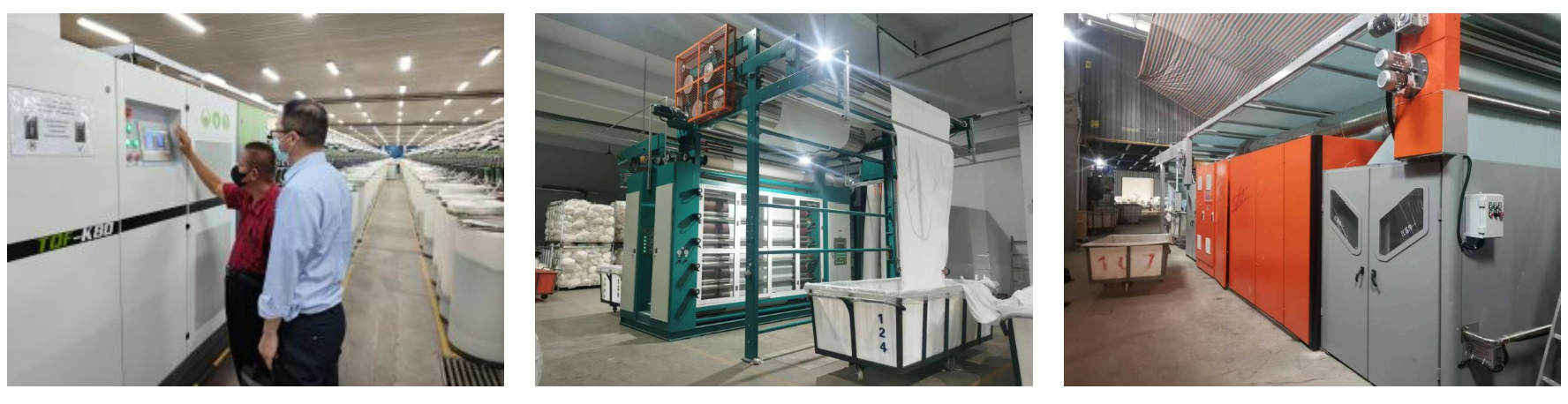

SutexMach Project Case
We have cooperated with large textile companies in many countries, and customers have reported that the equipment is running stably, production efficiency is significantly improved, and yarn quality has been significantly improved.>>read more
Parameter table
| Twist range | 80-2800TPM(2.03-71.09TPI) |
| Input spindle speed TFO spindle speed | Max. 11000rpm Max. 22000rpm |
| Yarn count range | Ne 4/2-100/2 with ballon limiter Ne 8/2-100/2 without ballon limiter |
| Feed in package | Max. OD 180mm cylindrical |
| Finished package | cone angle can be over 5°57′ package Max. OD 280mm |
