Dry-type transformers are a specialized type of electrical transformer in which the core and windings are not immersed in insulating liquid, such as oil. Instead, they rely on air or other solid materials for insulation and cooling. These transformers are widely recognized for their safety, efficiency, and environmental friendliness, making them a preferred choice in numerous applications, including industrial, commercial, and renewable energy sectors.
Tags:
Product Detail
1.Quality management system GB/T 19001-2016 ISO 9001: 2015
The operation of the whole ZHENGRUI system is strictly controlled and managed. This ensures the quality of products and material in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.
2.Accreditation certificate CE
LOW VOLTAGE DIRECTIVE,ELECTROMAGNETIC COMPATIBILITY DIRECTIVE ATTESTATION OF CONFORMITY
GENERAL PRODUCT SAFETY REGULATION ATTESTATION OF CONFORMITY
confirms that ZHENGRUI technical quality meets the requirements of all specific international standards for testing and calibration laboratories. All ZHENGRUI products are fully tested in a qualified testing room before leaving the factory, ensuring stable quality and providing absolute peace of mind for customers.
Zhengrui Dry-Type Transformers: Advanced Solutions for Modern Power Distribution
In the evolving landscape of electrical infrastructure, Zhengrui Dry-Type Transformers stand out as a beacon of innovation and reliability. Designed to meet the rigorous demands of contemporary power distribution systems, these transformers offer a multitude of benefits, including enhanced safety, superior performance, and environmental sustainability.
Key Features
-
Safety and Environmental Friendliness
Zhengrui Dry-Type Transformers are engineered without the use of insulating liquids, such as oil, thereby eliminating risks associated with leaks and fires. This design choice not only enhances operational safety but also ensures environmental protection, making them ideal for installations in densely populated or environmentally sensitive areas.
-
Robust Construction and Reliability
Utilizing high-quality materials and advanced manufacturing techniques, these transformers exhibit exceptional mechanical strength and resilience. Features such as low partial discharge and high thermal stability contribute to their long service life and reliable performance under various operating conditions.
-
Energy Efficiency
Designed with low loss and low noise characteristics, Zhengrui Dry-Type Transformers contribute to significant energy savings and a reduction in operational costs. Their efficient design aligns with modern energy conservation standards, supporting sustainable development initiatives.
-
Effective Cooling System
The transformers boast excellent heat dissipation capabilities, allowing for robust operational performance. When equipped with forced air cooling systems, they can operate at increased capacities, ensuring adaptability to varying load requirements.
-
Moisture Resistance
With superior moisture-proof properties, Zhengrui Dry-Type Transformers are well-suited for operation in high humidity and other challenging environments, maintaining reliability and performance without the need for extensive maintenance.
Technical Specifications
-
Voltage Rating: Up to 35kV
-
Capacity Range: As per specific application requirements
-
Insulation Class: F or H, depending on design
-
Cooling Method: Natural air cooling (AN) or forced air cooling (AF)
-
Protection Level: Customizable to IP20, IP23, or higher as needed
Applications
Zhengrui Dry-Type Transformers are versatile and can be deployed across various sectors:
-
Commercial Buildings: Ideal for hospitals, office complexes, and shopping centers where safety and low maintenance are paramount.
-
Industrial Facilities: Suitable for manufacturing plants and processing industries requiring robust and reliable power solutions.
-
Renewable Energy Installations: Perfect for wind farms and solar power stations, supporting sustainable energy initiatives.
-
Urban Infrastructure: Applicable in metro stations, airports, and high-rise buildings where space and safety are critical considerations.
Conclusion
Zhengrui Dry-Type Transformers embody a commitment to quality, safety, and efficiency. Their advanced design and robust features make them a reliable choice for modern power distribution needs, ensuring seamless integration into various applications while promoting environmental sustainability.

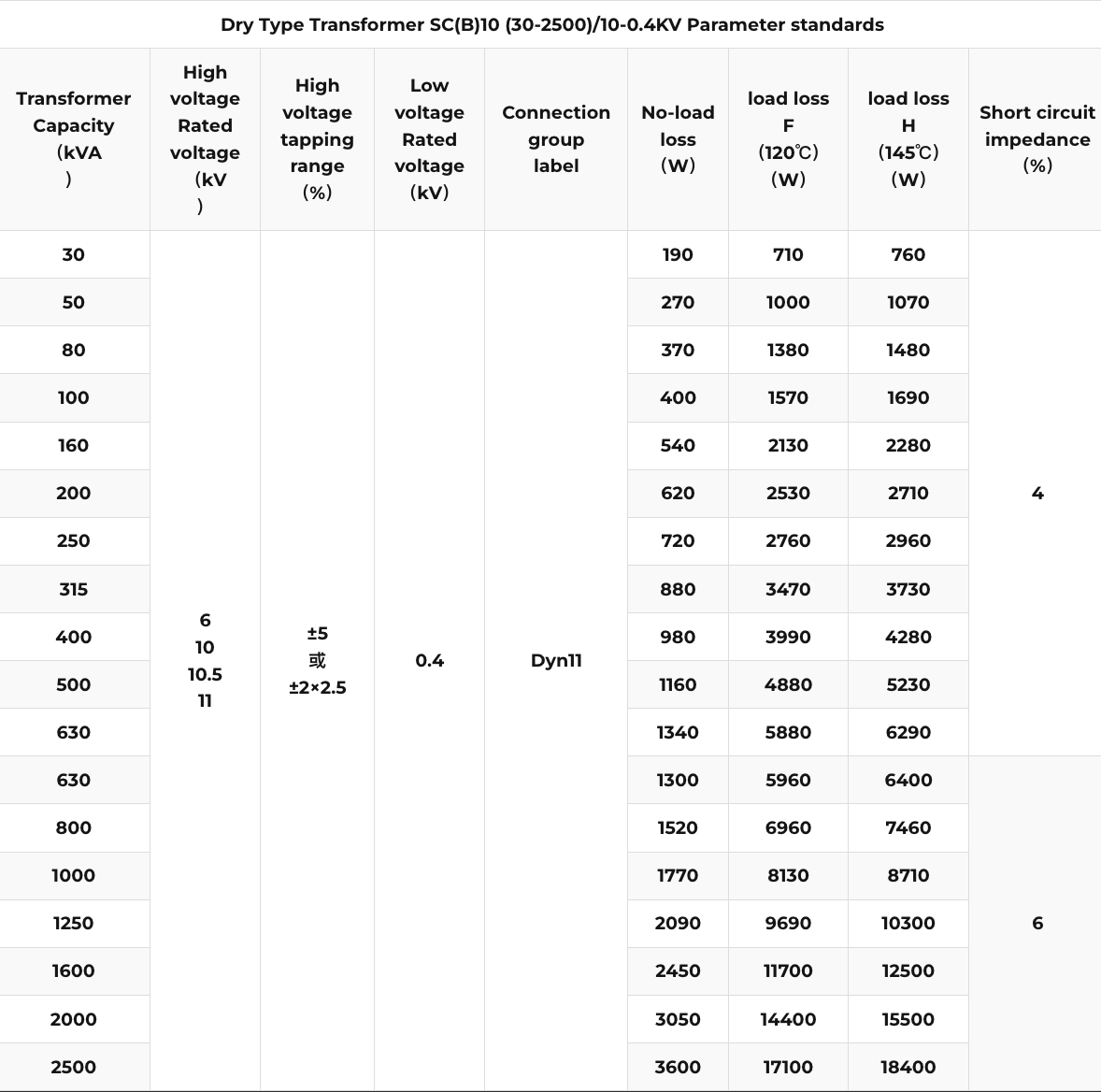

Parameter table
