The machine is specially designed for G-series TFO twister with its own yarn frame, easy to operate. The molding mode adopts electronic integrated control, it is easy to adjust and with unique high density and yarn program, its density can reach 0.00055-0.0006kg/cc, for the latter twisting to improve the weight of the rolls to provide technical support, in the same total volume of the rolls, through precision yarn winding, the latter twisting can reduce power consumption by about 15%.
Tags: china double winding machine, double winding machine, double winding machine manufacturer, double winding machine supplier, doubling machine, doubling winder, yarn doubling machine

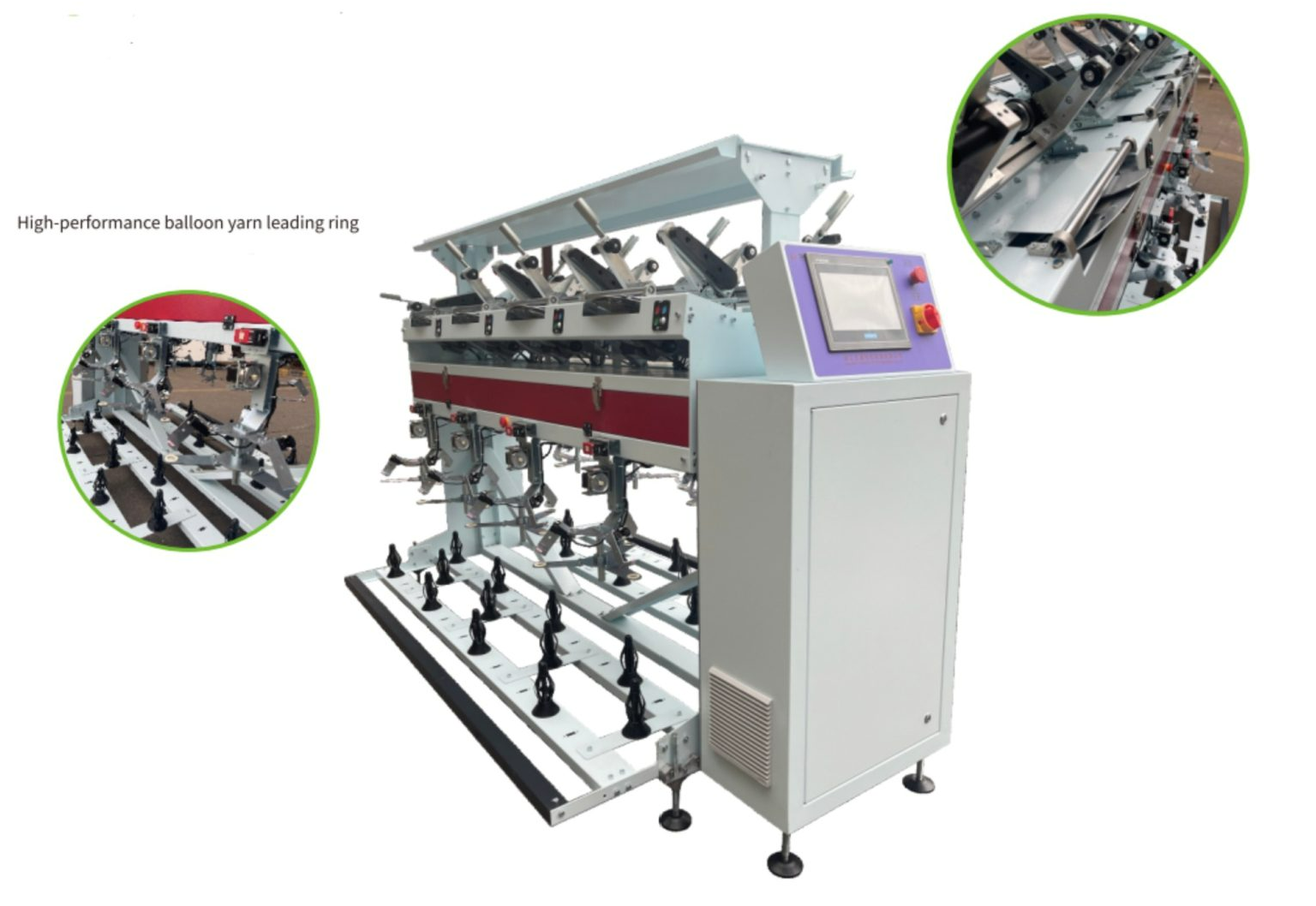

Precision propeller double winding machine
Product Detail
Advantage Of Choosing Precision Assembly Doubling Winder
reduced hairiness increase,
higher speeds of up to 1200m/min.,
reduced yarn breakage rate on TFO,
optimized running time and improved efficiency of TFO,
more knotless yarn lengths
Advantages Of Double Machine
High-precision package weight:The double-layer machine adopts advanced technology to achieve high-precision yarn wrap weight control. This not only helps reduce waste, but also ensures consistency in the quality of each batch of yarn. The use of high-precision wrapped yarns can achieve more efficient and stable production in subsequent twisting processes, thereby improving overall production efficiency.
Dual motor control:The equipment is equipped with a dual-motor control system, which allows the machine to more flexibly respond to various complex production needs. Whether adjusting production speeds or making process adjustments for different yarn types, dual-motor control provides precise operation to ensure product quality and production efficiency.
Electronically-controlled anti-pattern device:During yarn processing, patterns and banding phenomena can affect the final quality of the yarn. Our equipment integrates an electronically controlled anti-pattern device, which can effectively avoid these undesirable phenomena through intelligent adjustment. This device not only improves the appearance quality of the yarn, but also reduces the reject rate in production and saves costs.
Straight yarn path:The equipment is designed with a straight yarn path to reduce yarn friction and wear during processing. This design not only extends the service life of the yarn, but also improves the operating efficiency of the machine. The smoother the yarn path, the smaller the tension fluctuations during the production process, further improving the stability of production.
Independent length measurement and speed control:The length and speed of each yarn can be independently controlled and measured. This precise control system ensures that the length of each yarn is consistent, thereby improving product consistency. In addition, independent speed control allows the equipment to adapt to different production needs and flexibly adjust to meet customers ‘various customization needs.
Zero fracture or pattern areas:Through optimal design of the equipment, yarn breaks and pattern areas are almost eliminated. This design not only improves production efficiency, but also reduces downtime caused by yarn quality issues, thereby improving overall production capacity.
Perfect unwinding performance:The unwinding performance of the yarn directly affects the smoothness of subsequent processes. Our equipment is precisely tuned to ensure that the yarn remains smooth and smooth when unwinding, and is not prone to knots or entanglements. Perfect unwinding performance not only improves production efficiency, but also reduces yarn waste.
Parameter table
| type | DPW |
| gauge | 505mm |
| spindles per section | 8 |
| yarn assembly qty. | ≤4 |
| winding speed | 1200m/min. |
| drive | individual servo motor |
| power | 300W |
| yarn tension | magnetic tension |
| traverse | 6″, 8″ |
| length of machine | 350 + (spindle number/8)x2100mm |
Yarn Doubling Machine FAQ
Q: How to purchase spare parts and consumables?
A: You can purchase spare parts and consumables through our website or customer service. We provide fast delivery services to ensure that your production is uninterrupted.
Q: Can I provide on-site technical support?
A: Yes, we provide on-site technical support services, including equipment installation, debugging, maintenance and troubleshooting, to ensure the normal operation of the equipment.
Q: Is the installation of the equipment complex?
A: Our two-for-one twister is simple in design and easy to install, but in order to ensure best performance, it is recommended to install and debug it by our professional engineers.
Q: How to carry out regular maintenance of the two-for-one twister?
A: Regular maintenance includes cleaning the machine surface, checking lubricating oil, checking drive belt tension, cleaning waste yarn, etc. For detailed operations, please refer to the equipment maintenance manual.
Q: What should I do if the yarn breaks during the operation of the equipment?
A: Yarn breaks can be caused by a variety of reasons, such as yarn quality problems or improper equipment tension settings. It is recommended to check the yarn quality and adjust the tension setting of the equipment. If the problem remains unresolved, contact our technical support team.
