Model: GE2269. The fabrics produced mainly include lining cloth, light box cloth, geotextile, fiberglass and other engineering fabrics, which are mainly used in clothing, construction and bridge repair, advertising, reinforcement materials, coating substrates and geotechnical engineering.
Tags: china full-width weft insertion warp knitting machine, full-width weft insertion warp knitting machine, warp knitting machine manufacturer, warp knitting machine supplier, weft insertion warp knitting machine
Full-width weft insertion warp knitting machine
Product Detail
Features of full-width weft insertion warp knitting machines
High-performance warp knitting machines with parallel weft arrangement system. The weft yarns correspond to horizontally arranged tubes.
Applications of weft insertion warp knitting machines

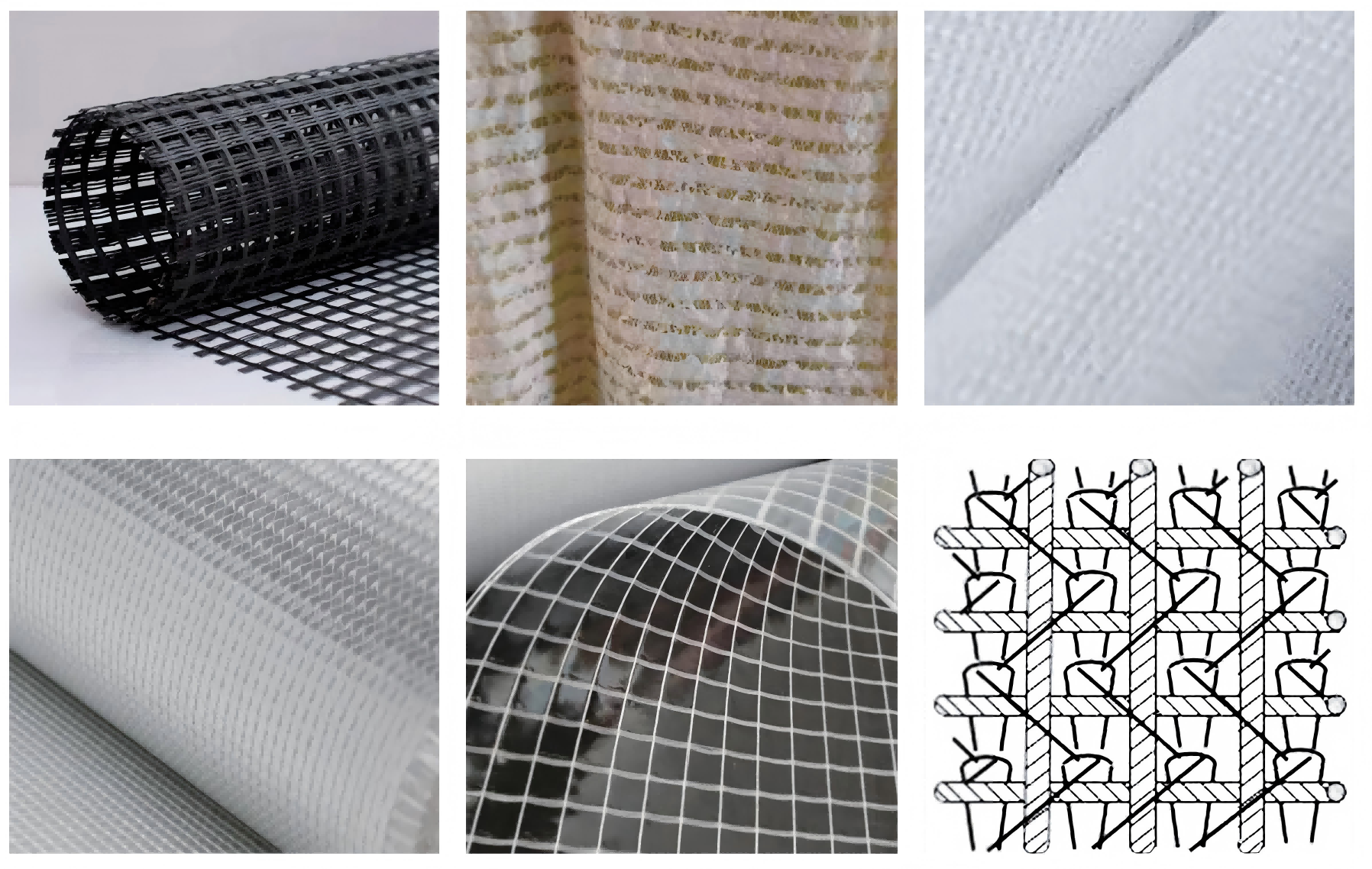

The fabrics produced mainly include interlinings, light fabrics, geotextiles, fiberglass and other technical fabrics, which are mainly used in clothing, construction and bridge repair, advertising, reinforcement materials, coating substrates, and geotechnical engineering.
Technical Data Of Warp Knitting Machine
needle type: compound needle, weft push needle
gauge: E5, E6, E18, E24
number of bars: 2 guide bars( 1 guide bar + 1 weft knitting bar, 2 guide bar + 1 weft knitting bar)
working width: 245″, 268″
weft laying system: a weft laying trolley that can carry 30 bobbins
Max. speed: 1500rpm
Parameter table
| working width | dimension(LxWxH, mm) | floor area(m²) | weight(kg) | total power(kW) |
| 245″ | 6500×4500×2500 | 29.25 | 20000 | 32.25 |
| 268” | 9000×5500×3000 | 49.5 | 25000 | 36.25 |
