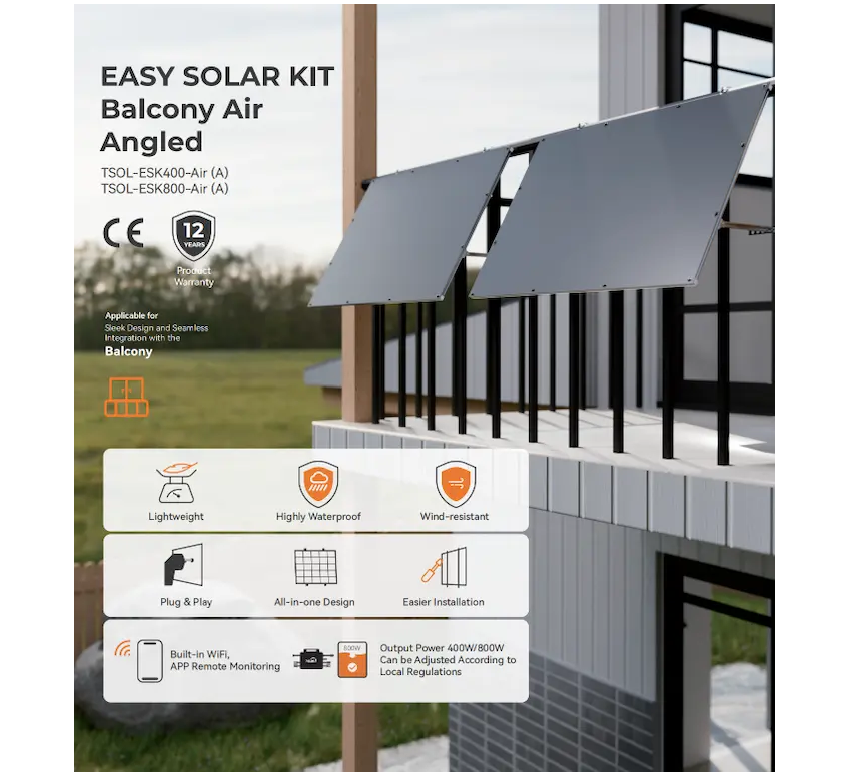

Easy Balcony Air Angled Solar Panel Kits

  Product Detail

Product Highlights

TSUN Balcony-Angled Solar Kit | Technical White Paper & Application Guide

1. Revolutionary Lightweight Design

Zero Structural Load
The patented honeycomb aluminum frame weighs just 2.8 kg/m² – 50% less than traditional modules.

Damage-Free Installation
The clamp-based installation requires no drilling or welding, preserving the integrity of balconies and fences.

Aesthetic Integration
The hidden wiring design blends with wood, metal and PVC materials to maintain architectural harmony.

2. High Energy Generation Efficiency

Optimized Angled Design
A fixed 15° tilt angle increases sunlight capture by 30% compared to flat installations.

High-Efficiency Modules
MONO PERC cells provide 21.5% conversion efficiency, generating 1.2 kWh/m² per day.

Low-Light Efficiency
25% higher power output in cloudy or rainy conditions than standard modules.

3. Ultra-Fast Installation

3-Step Installation Process
Clamp on balcony/fence (no tools required)
Plugs
Start generating power immediately

DIY-Friendly
Supplied with a complete set of installation tools. Self-setup in just 15 minutes.

Certified Safety
Meets IEC 61730 fire safety standards for risk-free use on balconies.

4. Versatile Application Scenarios

① Balcony Solar System
 • Fits balconies from 1 to 6 m², generating 1.2–7.2 kWh/day.
 • Plug-and-play connection to home battery systems enables self-consumption.

② Solar Power Fence
 • Compatible with fence heights from 1.2 to 2.4 m without structural damage.
 • Supports full-size modules 166/182 mm in flexible layouts.

③ Outdoor Decorative Solar
 • Concealed cable routing integrates seamlessly with garden lighting, fountains and landscape features.
 • Up to 8 hours of night lighting (with optional energy storage).

5. Full Life Cycle Warranty

10-Year Product Warranty
Covering material and manufacturing defects.

25-Year Performance Warranty
<1% degradation in the first year; ≤0.4% annual degradation thereafter.

Global Parts Support
8 regional warehouses with emergency parts delivered within 48 hours.

FAQ Highlights

Q1: Will balconies support the weight of the system?
A: Yes. A single system weighs less than 8 kg – equivalent to two potted plants – which is within the standard balcony load limits.

Q2: Will it fall in high winds?
A: No. The system is tested to 120 km/h wind pressure (equivalent to a Level 12 typhoon). The patented clamp design increases wind resistance by 50%.

Q3: Is a battery required?
A: An optional 200 Wh portable storage kit is available. Supports USB, DC and AC outputs for balcony lighting and mobile phone charging.

Q4: How is the performance on cloudy days?
A: The improved low-light design delivers up to 0.8 kWh/m² even on rainy days – 25% better than conventional panels.

Q5: How is it connected to your home's electrical grid?
A: A plug-and-play inverter is included, supporting 110V/220V. No electrician required to connect to the electrical grid.

TSUN Easy Balcony Air Angled Solar Kit – Turning Sunlight into Daily Poetry

Start your low-carbon lifestyle today with a plug-and-play balcony solar system. Let every ray of light enhance your home.

  Parameter table

Technical Data

Model	TSOL-ESK400-Air (A)	TSOL-ESK800-Air (A)
PV Module Parameter *
Module Power(Pmpp @STC)	200*2	200*4
Max. Module Efficiency	17.5%	17.5%
Temp. Coef. (Power)	-0.36%/℃	-0.36%/℃
Color	Black	Black

AC Output Parameter

Max. System Continous Output Power (W)**	400	800
Max. Output Current (A)	2	4
Nominal Output Voltage (V)***	220/230/240
Nominal Frequency (Hz)***	50/60
Power Factor	>0.99
Output Current Harmonic Distortion	<3%
Length of AC End Cable***	5m (10m, 15m optional)

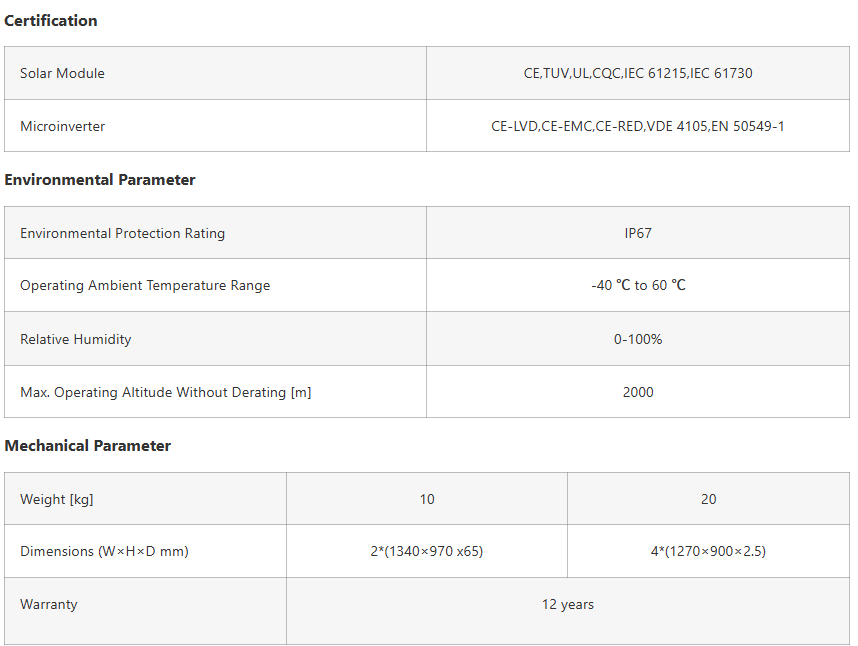

Certification

Solar Module	CE,TUV,UL,CQC,IEC 61215,IEC 61730
Microinverter	CE-LVD,CE-EMC,CE-RED,VDE 4105,EN 50549-1

Environmental Parameter

Environmental Protection Rating	IP67
Operating Ambient Temperature Range	-40 ℃ to 60 ℃
Relative Humidity	0-100%
Max. Operating Altitude Without Derating [m]	2000

Mechanical Parameter

Weight [kg]	10	20
Dimensions (W×H×D mm)	2*(1340×970 x65)	4*(1270×900×2.5)
Warranty	12 years

* The colour , brand and power of the solar module can be customized if the PV module is compatible to ESK system.

** The output power of the system can be limited to 300W(ESK400) or 600W(ESK800).

*** The AC voltage , frequency range and plug type may vary depending on specific country grid.

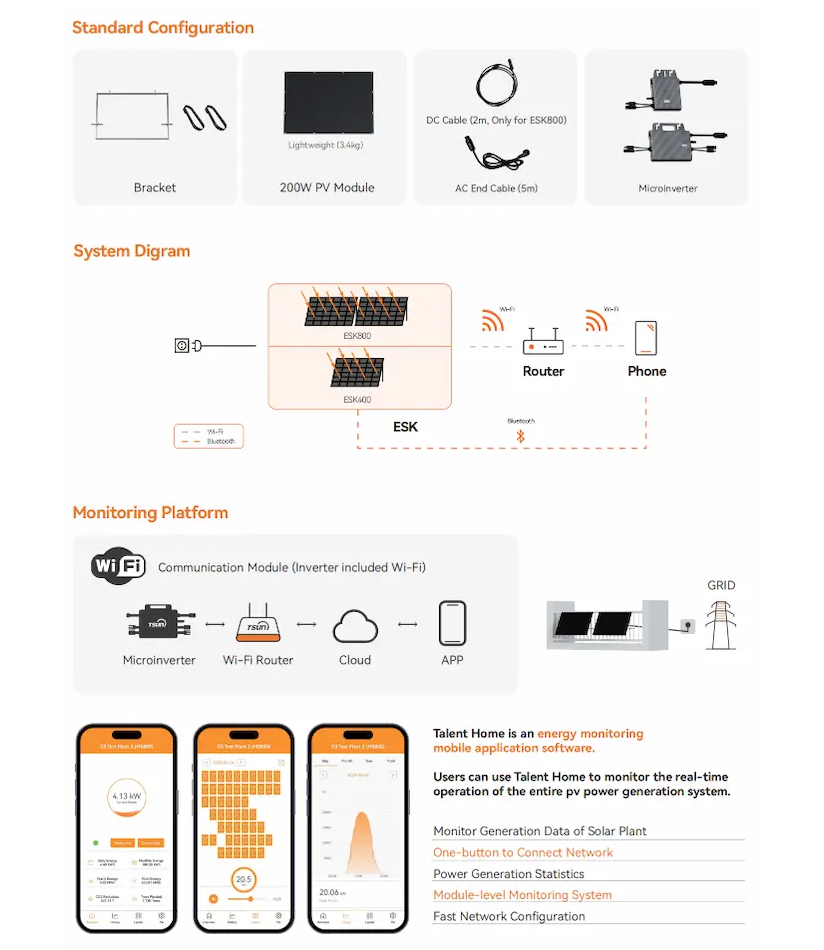

Ordering Information

Model
Balcony Air Vertical	TSOL-ESK400-Air (A)	Easy Solar Kit Balcony Air Angled (200W Light panel*2, micro inverter MS400, end cable 5m and plug)
Balcony Air Vertical	TSOL-ESK800-Air (A)	Easy Solar Kit Balcony Air Angled (200W Full black panel*4, micro inverter MS800, end cable 5m and plug)
