Aluminum Waterproof Carport Mounting System

  Product Detail

Product Highlights

Specialized solar panel mounting system with anti-slip coating for tiled roofs
A new photovoltaic solution for roofs featuring a sturdy structure, modular innovative design, and integrated waterproofing for unmatched convenience and stability.

Key Benefits

Enhanced Structural Safety

• Precision Rail Design: Constructed from extruded aircraft-grade aluminum alloy, offering wind resistance ≥2400 Pa and snow load capacity ≥5400 Pa, suitable for extreme climate conditions.

• Anti-slip Locking System: Built-in serrated anti-slip grooves prevent solar panel displacement, increasing overall impact resistance by 30%.

Innovative Quick Installation Technology

• Pre-assembled Universal Clamps: Integrated center and edge clamps designed for 30–40 mm thick PV panel frames, boosting installation efficiency by 50%.

• Hidden Snap Connections: Horizontal locking between rails requires no welding; on-site installation only needs a wrench.

Waterproof Integrated Solution

• Patented Drainage Groove Design: Rainwater drains along both sides of the rails, preventing leaks; system is IP65 waterproof certified.

• Compatible with Two Foundation Types:
   - Type N (2–4 pillars): Suitable for low-load scenarios (e.g., residential).
   - Type W (4–5 pillars + cross bracing): Suitable for high-altitude, high wind, and snow load areas (e.g., commercial parking lots)

Application Scenarios

Scenario	Key Benefits
Residential Use	Combined shading and power generation; resistant to typhoons and heavy rains; enhances property value.
Commercial Use	Provides shading for parking lots; annual PV capacity up to 1500 kWh/m²; reduces corporate carbon footprint.
Public Facilities	Solar shelters for parks and schools with educational demonstration value (e.g., renewable energy education).
EV Charging Stations	Integrates solar charging for zero-emission EV refueling; reduces grid dependency.



FAQ

Q: How does this system differ from traditional installation methods?
A: Traditional methods require on-site cutting and welding, taking 3 to 5 days. Our modular, pre-assembled system allows two people to install 100 m² in just 4 hours without heavy equipment, reducing labor costs by 70%.

Q: Can it adapt to complex terrain?
A: The rails support ±15° angle adjustment, accommodating slopes, curved roofs, and other irregular structures. The system has passed TÜV-certified wind tunnel tests at wind speeds up to 60 m/s.

Technical Data

• Material: 6063-T5 aluminum alloy (corrosion resistance > 25 years)

• Rail Span: 2.5 m (N-type) / 3.5 m (W-type)

• Compatible PV Panels: Single glass and double glass modules (30–40 mm thickness)

• Foundation Options: Ground screws (screw piles) or concrete foundations

Experience Now

Visit the official Aluminum Waterproof Carport Mounting System website for customized solutions or contact customer service for free load calculation services.
(Note: Actual performance parameters should be adjusted based on local wind and snow load data; engineering consultation is recommended.)

If you'd like, I can also help create brochure content, presentations, or marketing copy based on this. Just let me know!

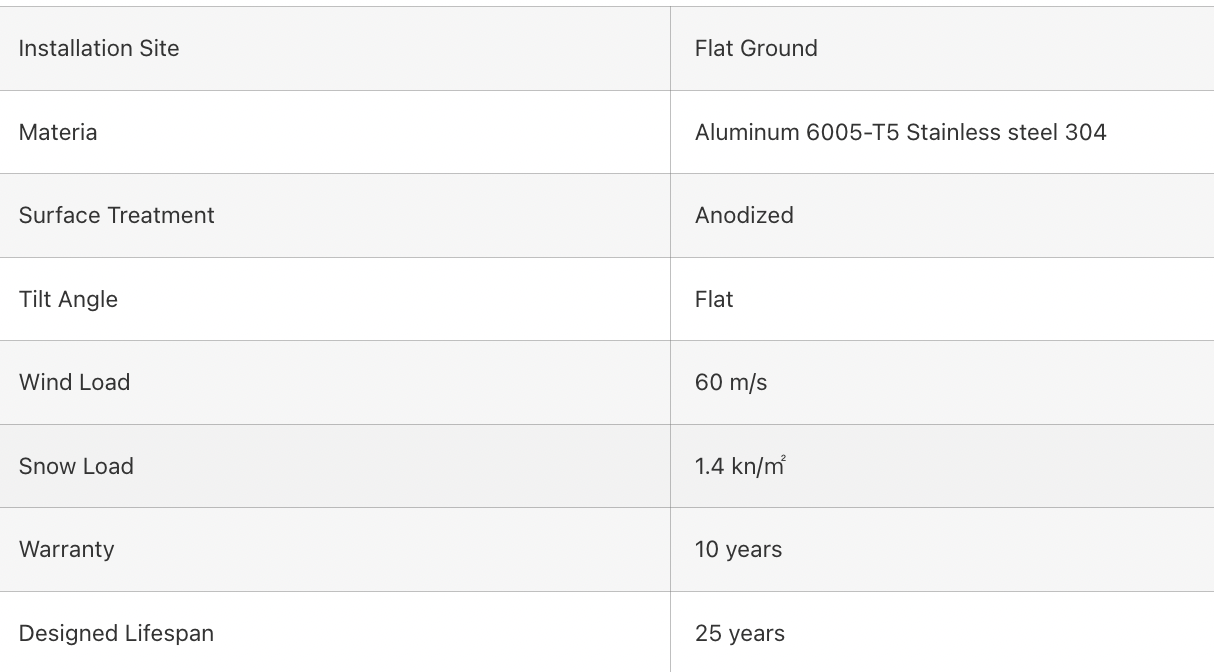

  Parameter table

Installation Site	Flat Ground
Materia	Aluminum 6005-T5 Stainless steel 304
Surface Treatment	Anodized
Tilt Angle	Flat
Wind Load	60 m/s
Snow Load	1.4 kn/㎡
Warranty	10 years
Designed Lifespan	25 years
